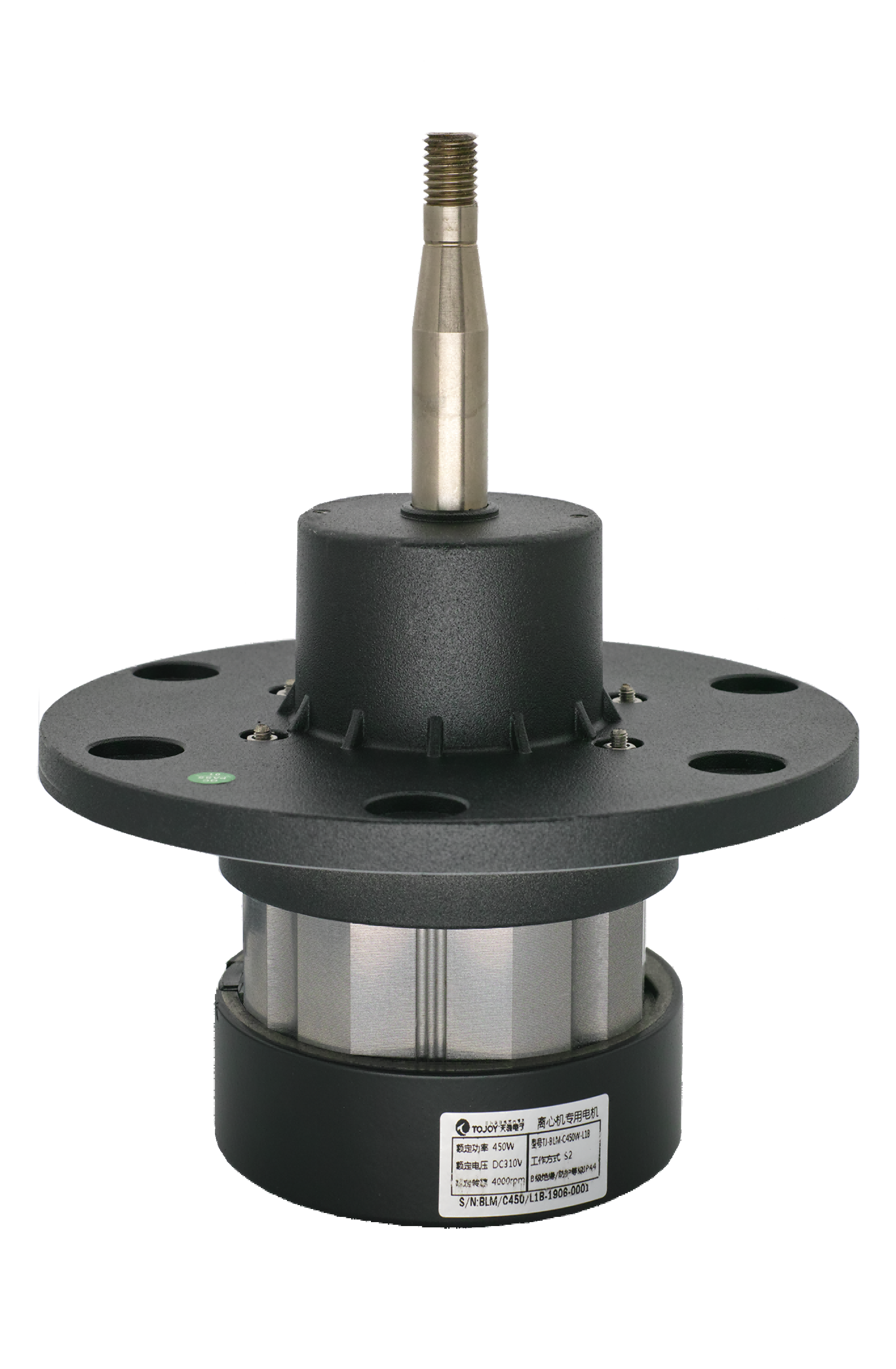

400W Low Speed DC Brushless Centrifuge Motor
- See More by Brushless DC Motor for Centrifuge
Model No.
BLM9812L-C400-DC08HT03
Product Overview
The 400W low-speed DC brushless centrifuge motor is a professional drive motor developed by Tianjiao Electronics, specially designed for small industrial centrifuges and laboratory centrifugal separation equipment. Adopting high-performance permanent magnet synchronous technology, it features low speed and high torque with stable constant-speed output. It maintains sufficient and steady power at 4000rpm, fully meeting the precise and smooth separation requirements of centrifuge machines.
With advanced brushless structure, this motor delivers high energy efficiency, lower power consumption and ultra-low noise operation. It effectively reduces equipment operating costs and improves working environment quality. Featuring low mechanical wear, maintenance-free performance and long service life, the motor runs smoothly without vibration. Certified with 3C standard and strictly inspected before delivery, it offers excellent heat resistance and consistent stable performance, which is an ideal cost-effective power solution for small centrifuge equipment.
Key Technical Specifications
Rated Power: 400W
Rated Voltage: DC300V
Poles: 4P
Rated Speed: 4000rpm
Insulation Class: Class B
Structure Type: Open Type
Ambient Temperature (AMB): 40℃
Thermal Class (TH,CL): 130℃(B)
Protection Grade: IP00
