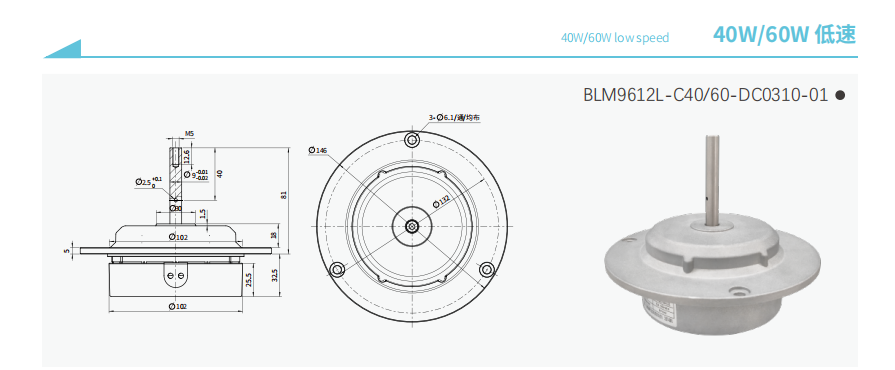

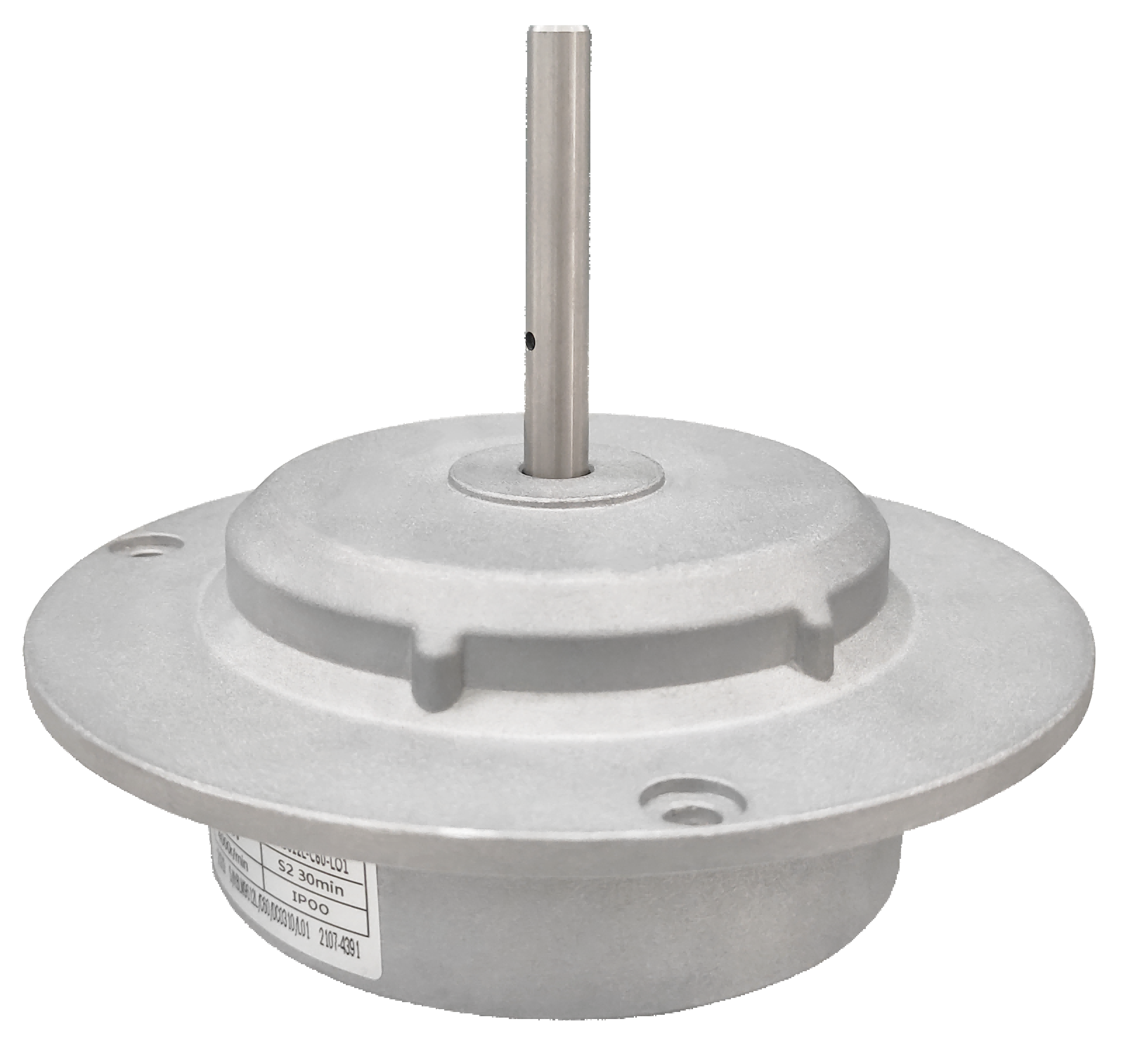

40W/60W Low Speed DC Brushless Centrifuge Motor
- See More by Brushless DC Motor for Centrifuge
Model No.
BLM9612L-C40/60-DC0310-01
Product Overview
This 40W/60W low-speed DC brushless centrifuge motor is developed and produced by Tianjiao Electronics, specially matched for small industrial and laboratory centrifuge equipment. Adopting permanent magnet synchronous brushless structure, it features low speed and high torque, stable operation, low noise, low power consumption and ultra-long service life. It perfectly meets the working requirements of constant low-speed rotation and precise separation of centrifuge machines. The brushless design reduces mechanical loss and ensures stable temperature and continuous operation. With strict production inspection and stable quality, this motor is a highly matched dedicated drive for miniature centrifuge equipment.
Key Specifications
Rated Power: 40W/60W
Rated Voltage: DC36V
Poles: 4P
Rated Speed: 4000rpm
Insulation Class: Class B
Structure Type: Open Type
Ambient Temperature (AMB): 40℃
Thermal Class (TH,CL): 130℃ (B)
Protection Grade: IP00
