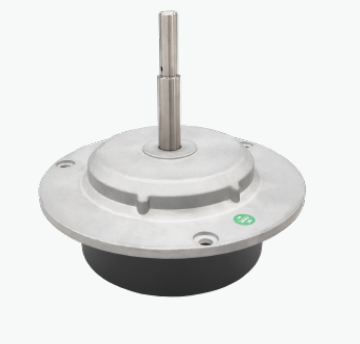

200W Low Speed DC Brushless Centrifuge Motor
- See More by Brushless DC Motor for Centrifuge
Model No.

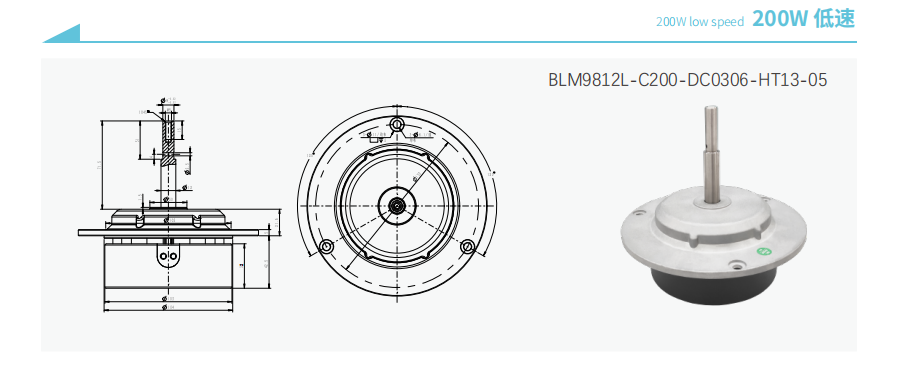

BLM9812L-C200-DC0306-HT13-05
Product Overview
This 200W low-speed DC brushless centrifuge motor is developed and produced by Tianjiao Electronics, specially matched for industrial and laboratory centrifuge equipment. Adopting permanent magnet synchronous brushless structure, it features low speed and high torque, stable operation, low noise, low power consumption and ultra-long service life. It perfectly meets the working requirements of constant low-speed rotation and precise separation of centrifuge machines. The brushless design reduces mechanical loss and ensures stable temperature and continuous operation. 3C certified with strict quality assurance, this motor is a highly matched dedicated drive for small centrifuge equipment.
Key Specifications
Rated Power: 200W
Rated Voltage: DC300V
Poles: 4P
Rated Speed: 4000rpm
Insulation Class: Class B
Structure Type: Open Type
Ambient Temperature (AMB): 40℃
Thermal Class (TH,CL): 130℃ (B)
Protection Grade: IP00
