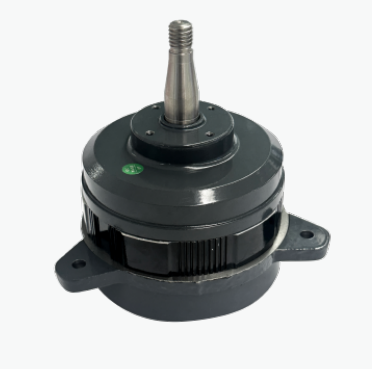

500W High Speed DC Brushless Centrifuge Motor
- See More by Brushless DC Motor for Centrifuge
Model No.

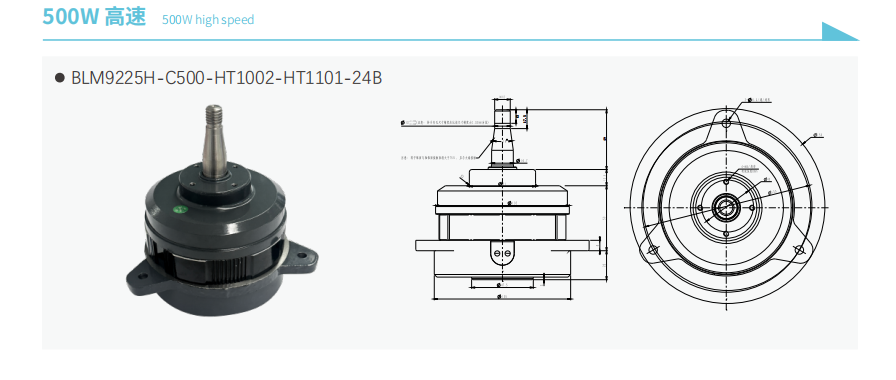

BLM9225H-C500-HT1002-HT1101-24B
Product Overview
The 500W high-speed DC brushless centrifuge motor is professionally developed by Tianjiao Electronics, specially designed for industrial centrifuges and precision separation equipment. Adopting premium permanent magnet synchronous structure, this motor features ultra-high speed, large torque and fast response. With a rated speed of 16000rpm, it fully meets the high-speed separation and precision purification requirements of centrifuge machines, delivering strong, uniform and stable power output.
Equipped with advanced brushless technology, this motor effectively solves the common defects of traditional brushed motors such as severe wear, high noise, high energy consumption and short service life. It boasts high energy efficiency, low power consumption, ultra-quiet operation and stable running performance. The brushless design greatly reduces mechanical wear and maintenance frequency, extending the service life significantly. Certified with 3C standard and strictly tested before delivery, this motor features high temperature resistance and consistent reliable performance, serving as the perfect drive motor for high-speed centrifuge equipment.
Key Technical Specifications
Rated Power: 500W
Rated Voltage: DC300V
Poles: 4P
Rated Speed: 16000rpm
Insulation Class: Class B
Structure Type: Open Type
Ambient Temperature (AMB): 40℃
Thermal Class (TH,CL): 130℃(B)
Protection Grade: IP00
