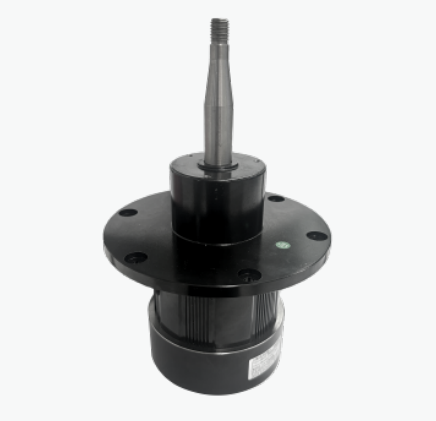

1000W Variable Speed DC Brushless Centrifuge Motor
- See More by Brushless DC Motor for Centrifuge
Model No.

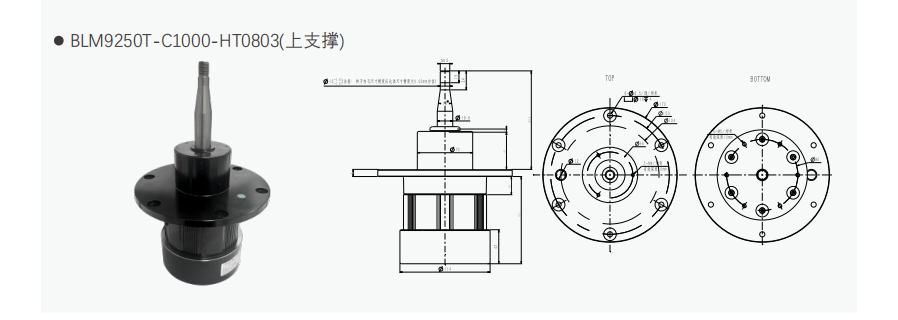

BLM9250T-C1000-HT0803 (Top Support)
Product Overview
This 1000W variable speed DC brushless centrifuge motor is developed and produced by Tianjiao Electronics for medium & large industrial and laboratory centrifuges. Built with permanent magnet synchronous brushless structure, it supports adjustable high/low speed with wide torque range, stable running, low noise, low power consumption and long service life. It realizes low-speed high-torque steady centrifugation and high-speed rapid material separation to satisfy variable working conditions. Brushless design cuts mechanical loss with controllable temperature rise for long-time continuous full-load operation. 3C certified and strictly inspected during production, it serves as ideal dedicated drive for large variable-speed centrifuge machines.
Key Specifications
Rated Power: 700W/1000W
Rated Voltage: DC300V
Poles: 4P
Rated Speed: 4000rpm/16000rpm
Insulation Class: Class B
Structure Type: Open Type (Top Support)
Ambient Temperature (AMB): 40℃
Thermal Class (TH,CL): 130℃(B)
Protection Grade: IP00
