500W High-Speed DC Brushless Centrifuge Motor
- See More by Brushless DC Motor for Centrifuge

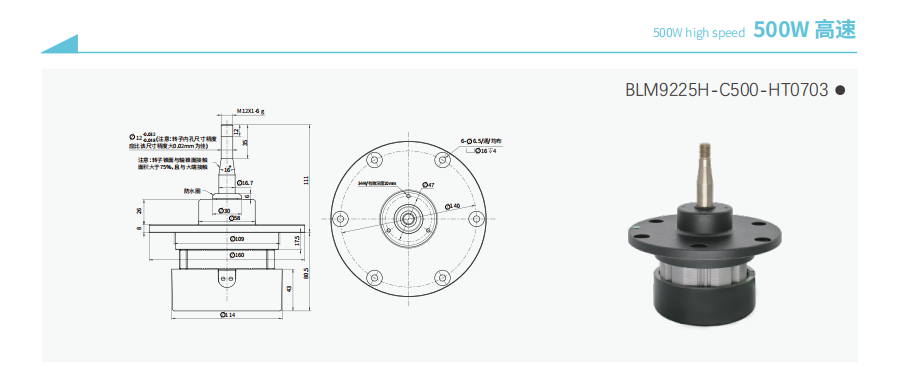

Model No.: BLM9225H-C500-HT0703
Developed by Tianjiao Electronics, this high-speed DC brushless motor is custom-engineered for centrifuge equipment. Built with permanent magnet synchronous structure, it delivers high torque and smooth constant operation. Featuring high efficiency, low noise and low power consumption, the motor ensures extended service life. All products have passed 3C certification with strict quality inspection for reliable performance.
Key Technical Specifications
Rated Power: 500W
Rated Voltage: DC300V
Poles: 4P
Rated Speed: 16000rpm
Insulation Class: Class B
Construction Type: Open Type
Ambient Temp. (AMB): 40℃
Thermal Class (TH,CL): 130℃(B)
Protection Class: IP00
