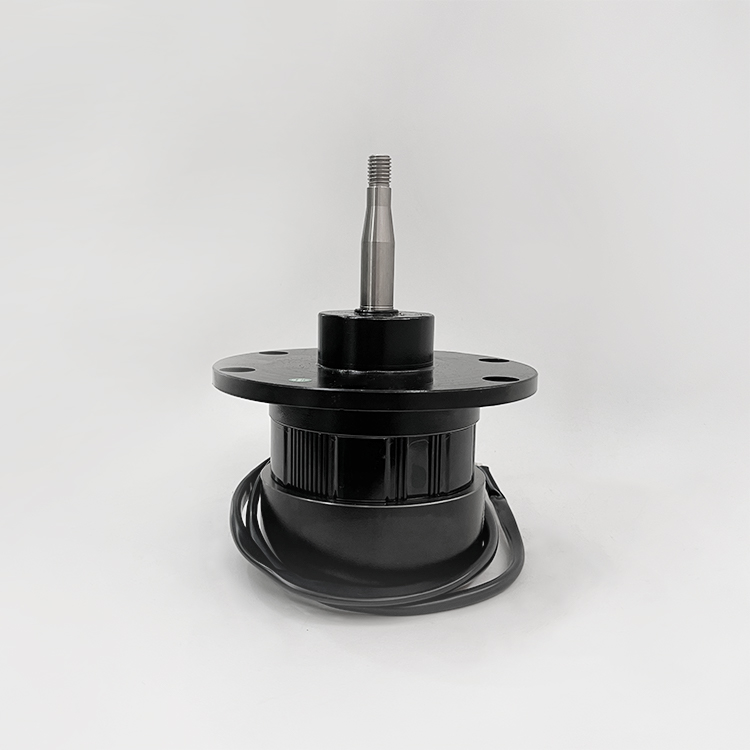

700W High Speed DC Brushless Centrifuge Motor
- See More by Brushless DC Motor for Centrifuge
Model No.

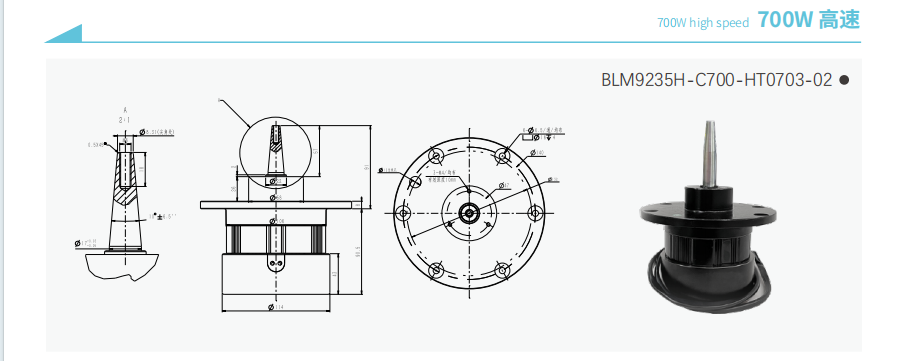

BLM9235H-C700-HT0703-02
Product Overview
This 700W high-speed DC brushless centrifuge motor is independently developed by Tianjiao Electronics, specially designed for laboratory and industrial high-speed centrifuge equipment. Adopting premium permanent magnet synchronous brushless technology, it features high speed, high torque, stable operation, low noise, low energy consumption and long service life. With no carbon brush wear, low failure rate and stable temperature rise, the motor supports long-term continuous operation. Certified by 3C standard and manufactured under strict quality control, it delivers reliable and consistent power output for high-precision centrifugal separation equipment, serving as an ideal drive solution for high-speed centrifuge machines.
Key Specifications
Rated Power: 700W
Rated Voltage: DC300V
Poles: 4P
Rated Speed: 16000rpm
Insulation Class: Class B
Structure Type: Open Type
Ambient Temperature (AMB): 40℃
Thermal Class (TH,CL): 130℃(B)
Protection Grade: IP00
