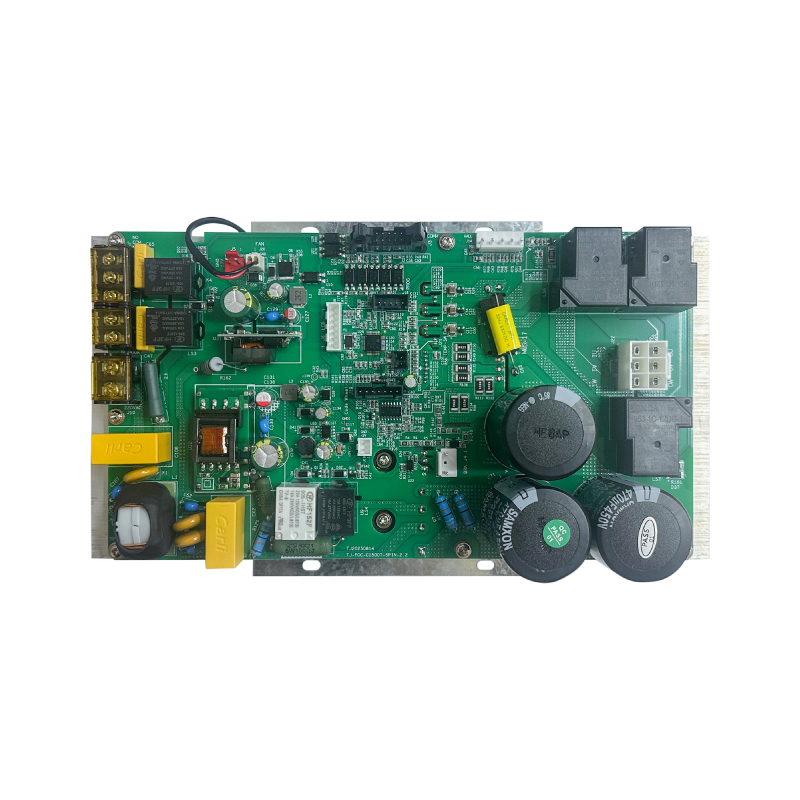

1500W Dual-Speed Compatible FOC DC Brushless Centrifuge Driver Board
- See More by Centrifuge Drive
Model No.
TJ-FOC-C1500T-SPIN-2.2 (Dual-Speed Compatible)
Product Overview
The TJ-FOC-C1500T-SPIN-2.2 dual-speed compatible FOC DC brushless centrifuge driver board is developed and manufactured by Tianjiao Electronics, adopting Field Oriented Control vector technology with high/low dual-speed compatible drive capability. It features wide speed regulation range, stable high-power torque output and smooth low-noise operation. This driver board integrates 220V door-opening output, 220V refrigeration NO/NC output and display board communication interface, with Hall sensor and three-phase wire connections (with dual-speed switching) for brushless motors, as well as brake resistor interface for braking function. It is equipped with multiple protection mechanisms including over-current, over-voltage and over-temperature protection. Featuring low power consumption, strong anti-interference capability and controllable temperature rise, it supports long-time continuous full-load stable operation. Fully function-tested with aging process before delivery, it is a reliable drive control accessory for 1500W class dual-speed medium & large centrifuge equipment.
Key Specifications
Rated Power: 1500W
Supply Voltage: AC220V
Control Mode: FOC (Field Oriented Control)
Feature: High/Low Dual-Speed Compatible Switching

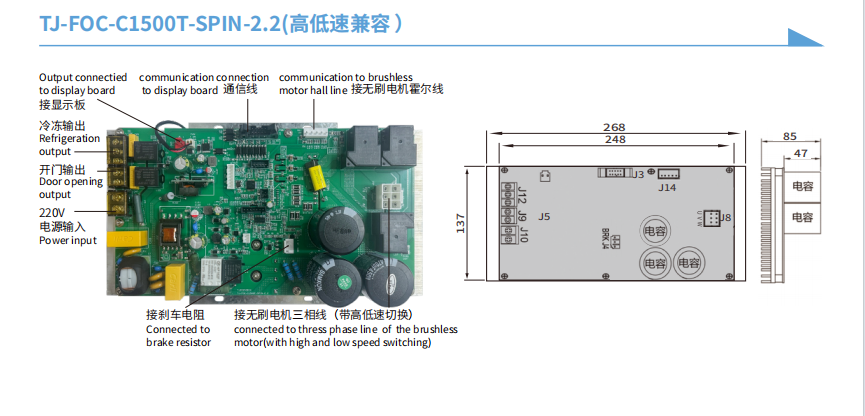

Core Functions
220V door-opening output
220V refrigeration NO/NC output
Display board communication support
Brushless motor Hall wire connection
Brushless motor three-phase wire connection (with dual-speed switching)
Brake resistor connection with braking function
