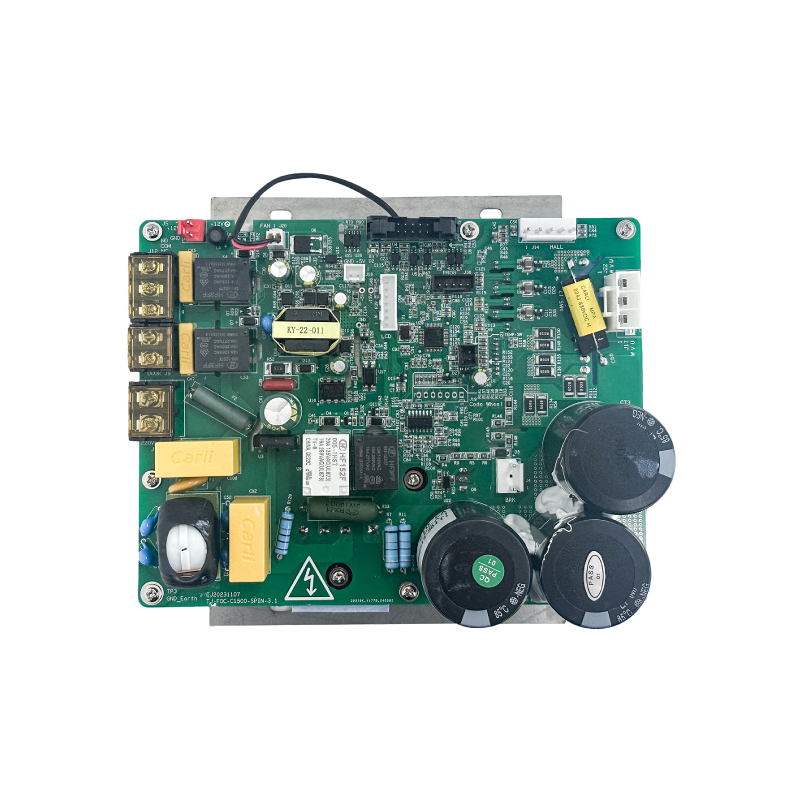

1500W FOC DC Brushless Centrifuge Driver Board (Imported Components)
- See More by Centrifuge Drive
Model No.
TJ-FOC-C1500W-SPIN-3.1 (Imported)
Product Overview
The TJ-FOC-C1500W-SPIN-3.1 FOC DC brushless centrifuge driver board with imported core components is developed and manufactured by Tianjiao Electronics. Adopting premium imported devices and Field Oriented Control vector technology, it delivers powerful high-power driving performance, high-precision speed regulation and stable low-noise operation. This driver board integrates 220V door-opening output, 220V refrigeration NO/NC output, display board communication interface, Hall sensor and three-phase wire connections for brushless motors, as well as brake resistor interface for braking function. It is equipped with multiple protection mechanisms including over-current, over-voltage and over-temperature protection. Featuring low power consumption, strong anti-interference capability and controllable temperature rise, it supports long-time continuous full-load stable operation. Fully function-tested with aging process before delivery, it is a highly reliable drive control accessory for 1500W class medium & large centrifuge equipment.
Key Specifications
Rated Power: 1500W
Supply Voltage: AC220V
Control Mode: FOC (Field Oriented Control)
Component Solution: Imported core components

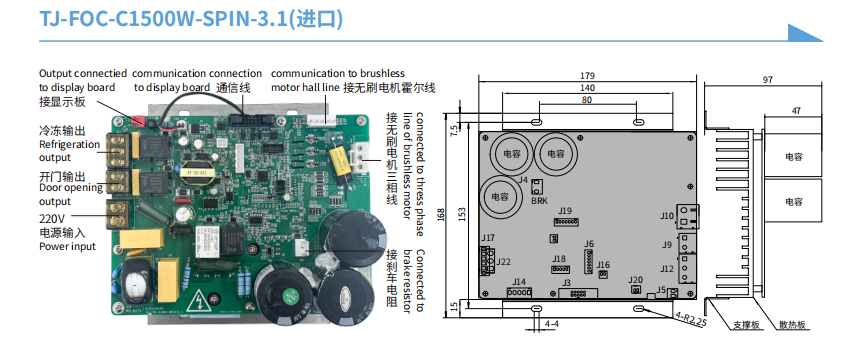

Core Functions
220V door-opening output
220V refrigeration NO/NC output
Display board communication support
Brushless motor Hall wire connection
Brushless motor three-phase wire connection
Brake resistor connection with braking function
