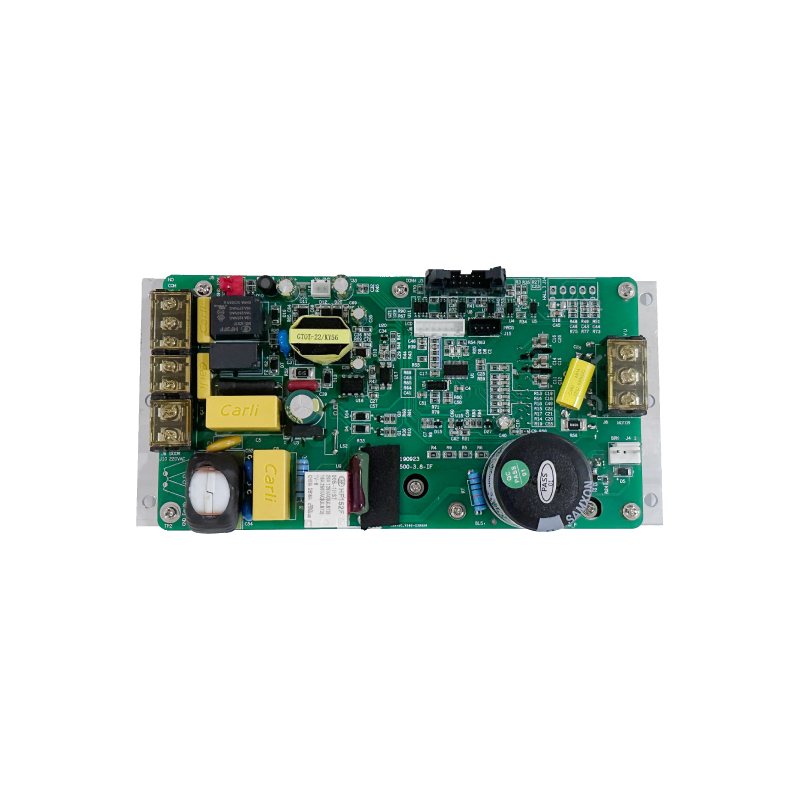

500W Variable Frequency Centrifuge Driver Board
- See More by Centrifuge Drive
Model No.
TJ-C500W Variable Frequency-3.8-IF
Product Overview

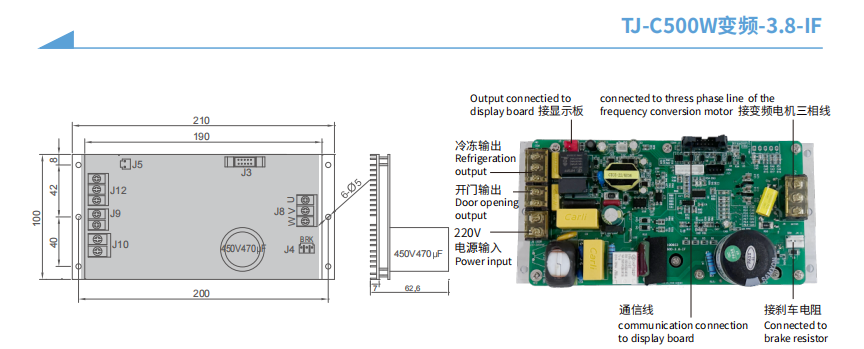

The TJ-C500W variable frequency centrifuge driver board is developed and manufactured by Tianjiao Electronics, adopting mature variable frequency control solution for stable driving performance, wide speed regulation range and smooth low-noise operation. This driver board integrates 220V door-opening output, 220V refrigeration NO/NC output, display board communication interface, three-phase wire connection for variable frequency motors, as well as brake resistor interface for braking function. It is equipped with multiple protection mechanisms including over-current, over-voltage and over-temperature protection. Featuring low power consumption, strong anti-interference capability and controllable temperature rise, it supports long-time continuous stable operation. Fully function-tested with aging process before delivery, it is a reliable drive control accessory for 500W class variable frequency centrifuge equipment.
Key Specifications
Rated Power: 500W
Supply Voltage: AC220V
Control Mode: Variable Frequency Drive Control
Core Functions
220V door-opening output
220V refrigeration NO/NC output
Display board communication support
Variable frequency motor three-phase wire connection
Brake resistor connection with braking function
