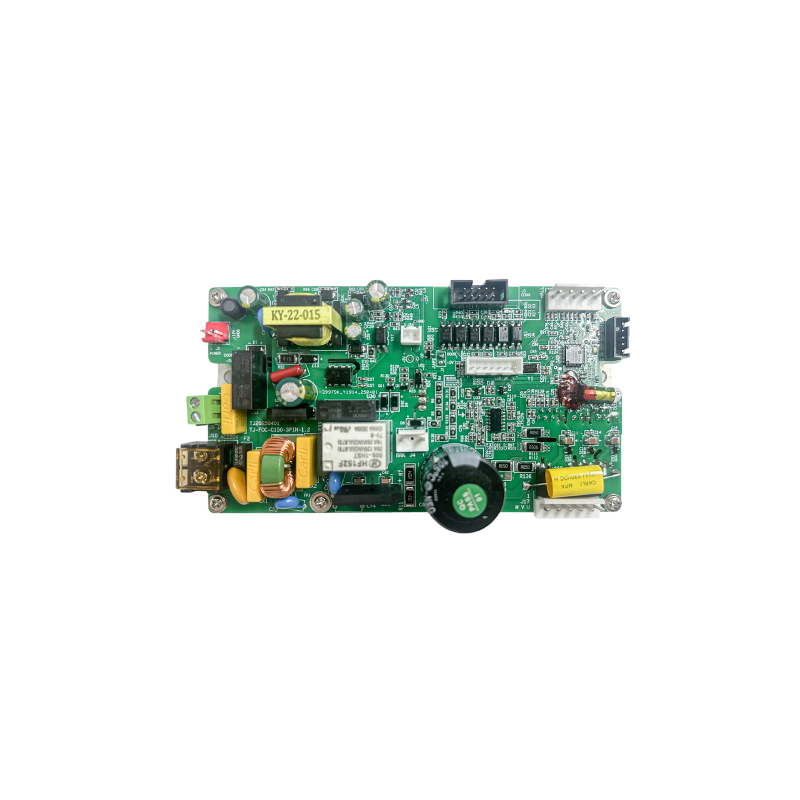

150W FOC DC Brushless Centrifuge Driver Board
- See More by Centrifuge Drive
Model No.
TJ-FOC-C150W-SPIN-1.2
Product Overview

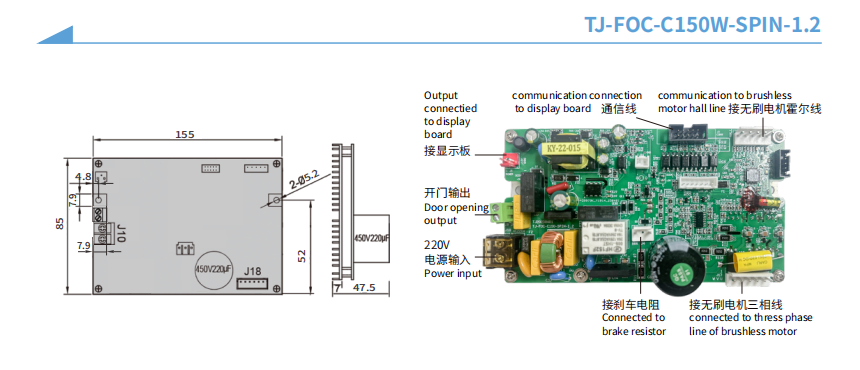

The TJ-FOC-C150W-SPIN-1.2 FOC DC brushless centrifuge driver board is developed and manufactured by Tianjiao Electronics, adopting Field Oriented Control vector technology for excellent driving performance, high-precision speed regulation and stable low-noise operation. This driver board integrates 220V door-opening output, display board communication interface, Hall sensor and three-phase wire connections for brushless motors, as well as brake resistor interface for braking function. It is equipped with multiple protection mechanisms including over-current, over-voltage and over-temperature protection. Featuring low power consumption, strong anti-interference capability and controllable temperature rise, it supports long-time continuous stable operation. Fully function-tested with aging process before delivery, it is a reliable drive control accessory for 150W class centrifuge equipment.
Key Specifications
• Rated Power: 150W
• Supply Voltage: AC220V
• Control Mode: FOC (Field Oriented Control)
Core Functions
• 220V door-opening output
• Display board communication support
• Brushless motor Hall wire connection
• Brushless motor three-phase wire connection
• Brake resistor connection with braking function
