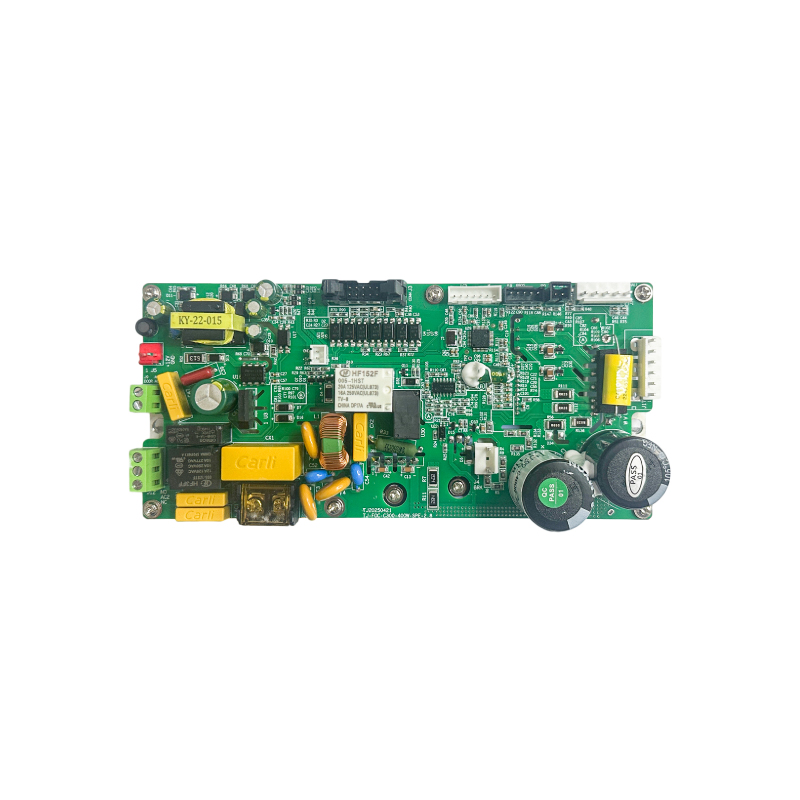

400W FOC DC Brushless Centrifuge Driver Board
- See More by Centrifuge Drive
Model No.
TJ-FOC-C300-400W-SPE-2.8
Product Overview
The TJ-FOC-C300-400W-SPE-2.8FOC DC brushless centrifuge driver board is developed and manufactured by Tianjiao Electronics, adopting Field Oriented Control vector technology for excellent driving performance, high-precision speed regulation and stable low-noise operation. This driver board integrates 220V door-opening output, 220V refrigeration NO/NC output, display board communication interface, Hall sensor and three-phase wire connections for brushless motors, as well as brake resistor interface for braking function. It is equipped with multiple protection mechanisms including over-current, over-voltage and over-temperature protection. Featuring low power consumption, strong anti-interference capability and controllable temperature rise, it supports long-time continuous stable operation. Fully function-tested with aging process before delivery, it is a reliable drive control accessory for 400W class centrifuge equipment.
Key Specifications
Rated Power: 400W
Supply Voltage: AC220V
Control Mode: FOC (Field Oriented Control)

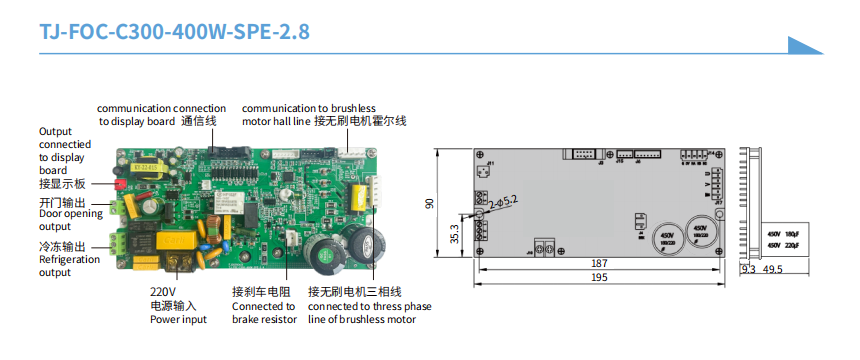

Core Functions
220V door-opening output
220V refrigeration NO/NC output
Display board communication support
Brushless motor Hall wire connection
Brushless motor three-phase wire connection
Brake resistor connection with braking function
