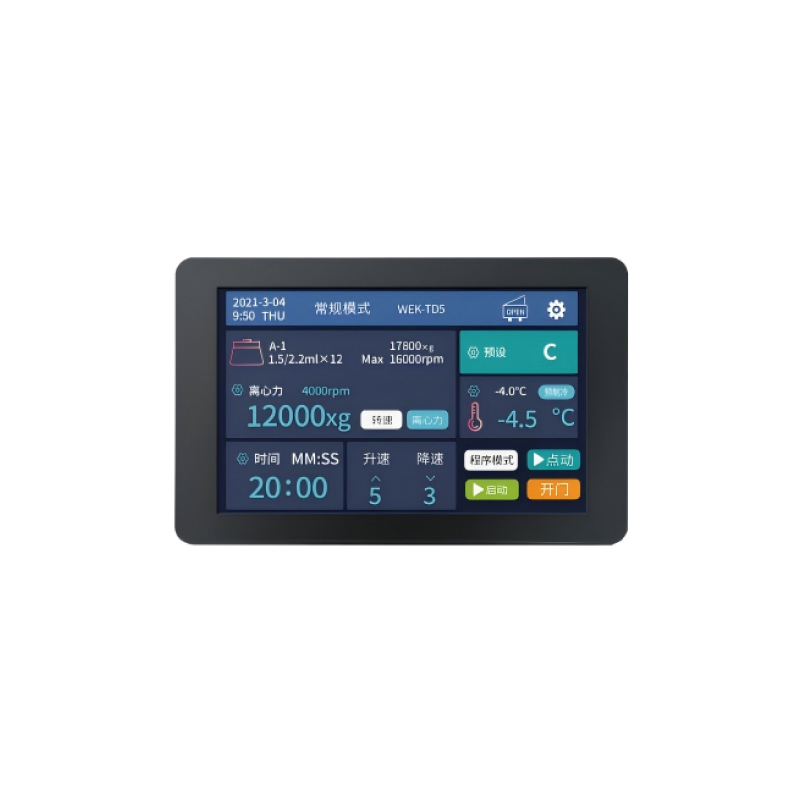

TJ-TCIP Pro Series 7"/8"/10" Centrifuge Control Platform
- See More by Centrifuge Display
Product Overview
The TJ-TCIP Pro series centrifuge control platform is independently developed by Tianjiao Electronics, serving as a flagship intelligent control solution for high-end centrifuge equipment, available in 7-inch, 8-inch and 10-inch sizes. The platform adopts 800M+120M dual-chip hardware architecture with 1G Flash large-capacity storage, equipped with IPS true-color LCD screen (1280×800 HD resolution) and capacitive full-lamination technology for smooth touch and delicate display. Deeply customized LINUX + RTOS dual operating system balances high performance and high real-time performance, with 2-second ultra-fast boot-up to working status. Supporting rich functions including audio/video playback, Chinese input and USB data export, and integrated with static rotor identification and imbalance warning protection, it is safe, reliable and powerful, fully meeting the intelligent control requirements of high-end laboratory and industrial centrifuges.

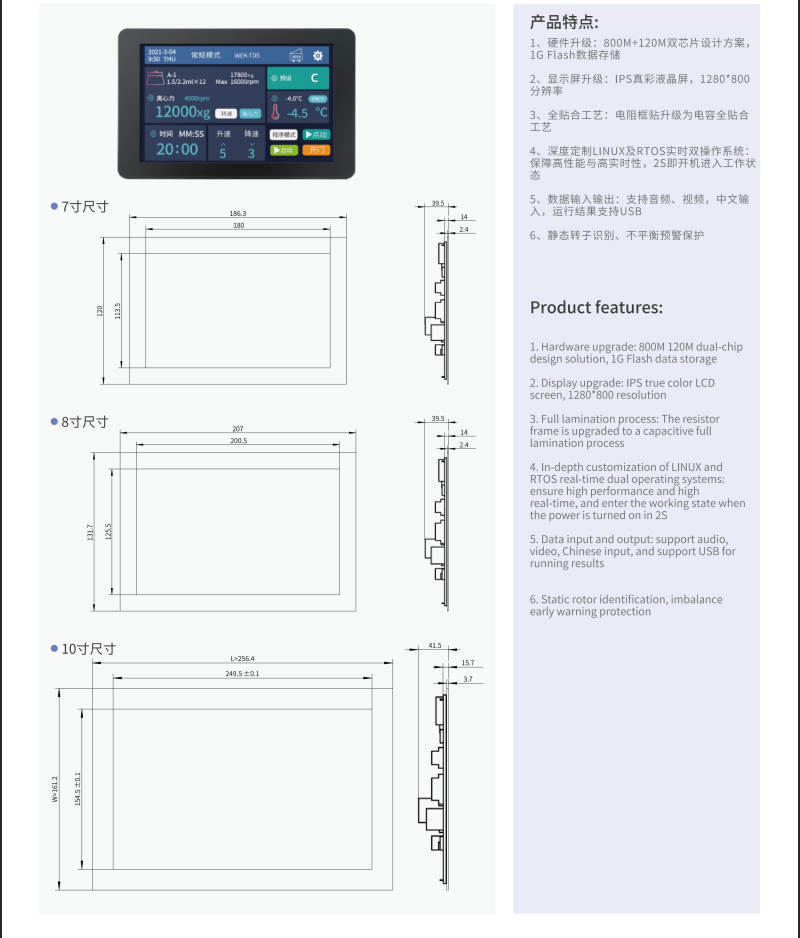

Key Features
Dual-Chip Hardware Upgrade: 800M+120M dual-chip design, 1G Flash large-capacity data storage, powerful performance
IPS HD Display: IPS true-color LCD screen, 1280×800 high resolution, authentic colors and clear display
Capacitive Full-Lamination: Upgraded from resistive frame bonding to capacitive full-lamination technology, precise and smooth touch with better visual effect
Dual Operating System: Deeply customized LINUX + RTOS real-time dual OS, combining high performance and real-time capability, 2-second ultra-fast boot
Rich Data Interaction: Audio and video playback support, Chinese input, USB export of operation results
Intelligent Safety Protection: Static rotor identification and imbalance warning protection for safer and more reliable operation
